Hot Selling for Pdlc Switch Glass Film - smart tinting laminating electrochromic film – Noyark Detail:

DESCRIPTION

Noyark smart tinting laminating electrochromic film is ideal for glass lamination.

We have produced our standard non-adhesive smart film for lamination for nearly 15 years. The non-adhesive smart film is used mainly for the manufacture of laminated smart glass.

Over the years there have been a number of improvements made to the liquid crystal and the latest generation of film offers excellent performance, consistency, clarity and longevity.

Noyark has already supplied several of the world’s largest glass laminators. If your company is looking to produce your own smart glass, please contact us for more information about becoming an OEM Partner.

The film is laminated using either PVB or EVA (bagging method) with a standard autoclave.

This unique technology will also transform any glass into a high definition rear projection screen to display corporate presentations, TV images and videos.

Smart tinting laminating electrochromic film is available in 4 standard widths 1000mm, 1200mm, 1500mm and 1800mm with a maximum sheet length of 3000mm, which can be cut to any size or shape.



FEATURES

+ Autoclave lamination (PVB/EVA).

+ Customizable sizes and shapes.

+ Multiple Color Options: white, black, gray, blue, red, yellow, etc.

+ Multiple Control Mode: remote control, wall switch control, WIFI control, APP control, sound control, light control, etc.smart film control mode



BENEFITS

Space Partition It provides architects and interior designers with a wide range of stylish projects solutions.
Privacy Protection Privacy at the flip of a switch. It is a effective solution to prevent disturbance or peeping.
UV Protection It blocks up to 99% of the sun’s UV rays protecting your skin and furnishings from fading.
Safety Protection It reduces death or injury during an explosion by keeping shattered glass together.
Sound Insulation It decreases the noise level reach 35 dB, helping to keep rooms cool, comfortable and quiet.



SPECIFICATIONS

Item Power Data
Physical
Width N/A In Roll: 1/1.2/1.5/1.8m; In Sheet: Cut to size
Length N/A In Roll: Unlimited; In Sheet: <3m
Overall Thickness N/A 0.55mm
Colors ON/OFF White, black, gray, blue, green, red, etc
Installation Method N/A Lamination
Lifespan ON/FF >10 years
Optical
VLT ON >85%
OFF >60%
Haze ON <5%
OFF >96%
Viewing Angle ON >150°
UV Blocking ON >80%
OFF >99%
IR Blocking ON >30%
OFF >85%
Electrical
Mains Supply ON  110VAC/220VAC
Working Voltage ON  48VAC/60VAC/65VAC
Power Consumption ON <4W/m²
Response Time ON—>OFF <10ms
OFF—>ON <10ms
Environmental
Working Temperature ON -35℃ to +75℃
Storage Temperature OFF -50℃ to +120℃



WHY CHOOSE US

1. Hi-Tech Manufacturing Equipment

Our core manufacturing equipment is imported directly from Germany.

2. Strong R&D Strength

We have 15 engineers in our R&D centre, all of them are doctors or professors from University of Science and Technology of China.

3. Strict Quality Control

3.1 Core Raw Material.

Our ITO film (no shrinkage, no color difference) and liquid crystal spacer (excellent uniformity) are imported directly from Japan; glue is imported directly from Europe; our liquid crystal temperature range is 70°C and protective film is resist to high temperature 80-90°C.

3.2 Finished Products Testing.

High & low temperature test at 75°C and -35°C for 500 hours; thermal shock test 10°C-90°C for 30 minutes; damp heat test for 500 hours; moisture removed by oven; smart films in sheet are powered by a 24-hour aging test; smart films in roll are tested with 100V high voltage to make sure zero breakdown.

4. OEM & ODM Acceptable

Customized sizes and shapes are available. Welcome to share your idea with us, let’s work together to make life more creative.



OUR WORKSHOP

decorative switchable smart film manufacturer

2019 new style electrochromic switchable pdlc film




Product detail pictures:

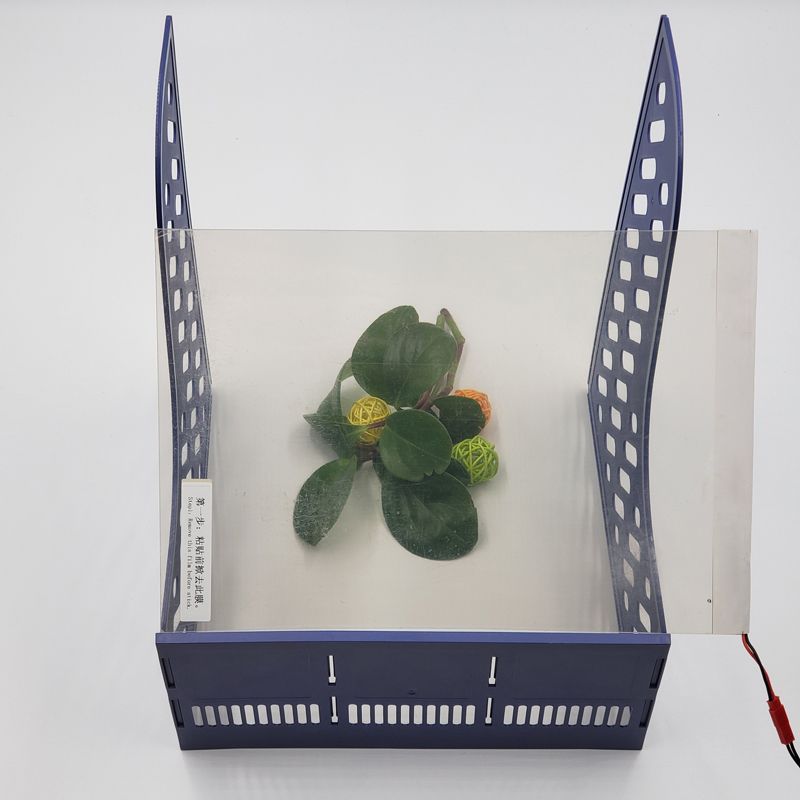

Hot Selling for Pdlc Switch Glass Film -
 smart tinting laminating electrochromic film – Noyark detail pictures

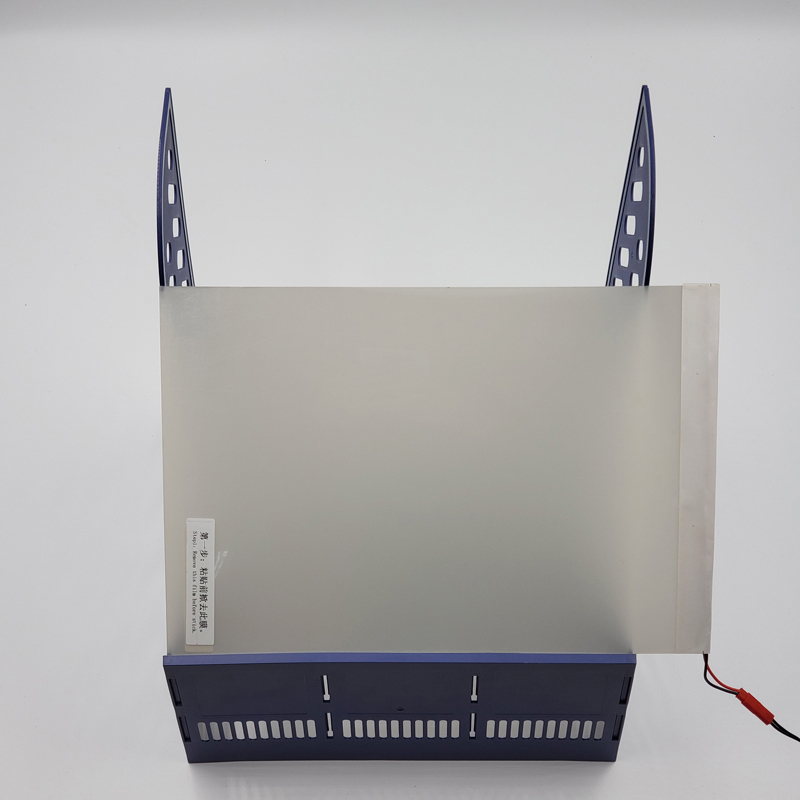

Hot Selling for Pdlc Switch Glass Film -
